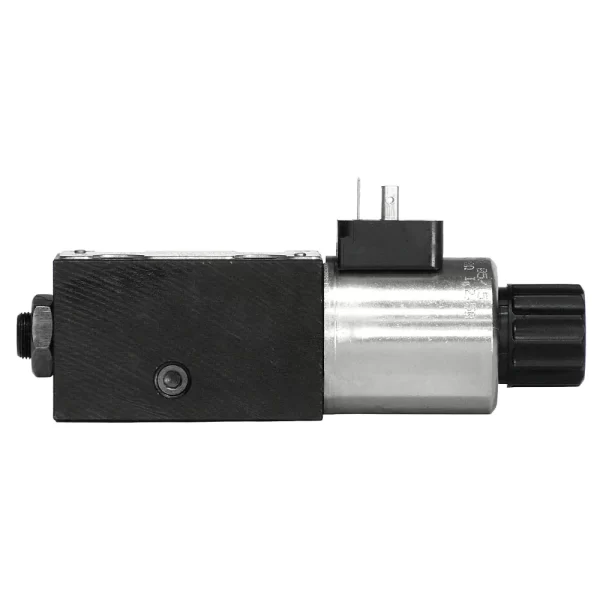

Parker Series RE06M*W Direct Operated Proportional Pressure Relief Valve
Parker’s direct operated proportional pressure relief valve series RE06M*W provides a fast response time and low presssure drop due to its powerful solenoid.
Get a quick quote
Direct operated proportional pressure relief valves of the series RE06M*W ensure fast response times and a very low pressure drop. Thus they are typically used as remote control valves for flow rates below 3 l/min.
Markets:
• Industrial
Benefits:
• Fast response time and low pressure drop – ensure efficient operation
• Very low pressure adjustment of pmin – predestined as remote control valve for cartridge valve combinations or pumps
• Short delivery time for most versions – no warehousing necessary
• Subplate mounting according to ISO 6264
• Direct operated with proportional solenoid
• 4 pressure stages
• 2 pressure ports, A and P
Applications:
• Suitable for general hydraulic applications
Technical Specifications
| Product Series | Pressure valve |
| Operation Type | Direct |
| Actuation Type | Solenoid, proportional |
| Electronics Type | External |
| Mounting Type | Subplate mounting |
| Mounting Position | Unrestricted, horizontal mounting preferred |
| Interface Type | ISO 6264 norm |
| Port Connection | NG06 / CETOP 03 |
| Port Type | 2 pressure ports, A and P |
| Maximum Operating Pressure | 350 bar |
| Pressure Control Range | Depending on configuration, 105-350 bar |
| Maximum Flow Rate | 2.5 L/min |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -20 °C |
| Seal Material | NBR, FPM |
| For Fluid Type | Hydraulic oil according to DIN 51524, Water glycol |
| Body Material | Cast iron |
| Weight | 1.8 kg |
