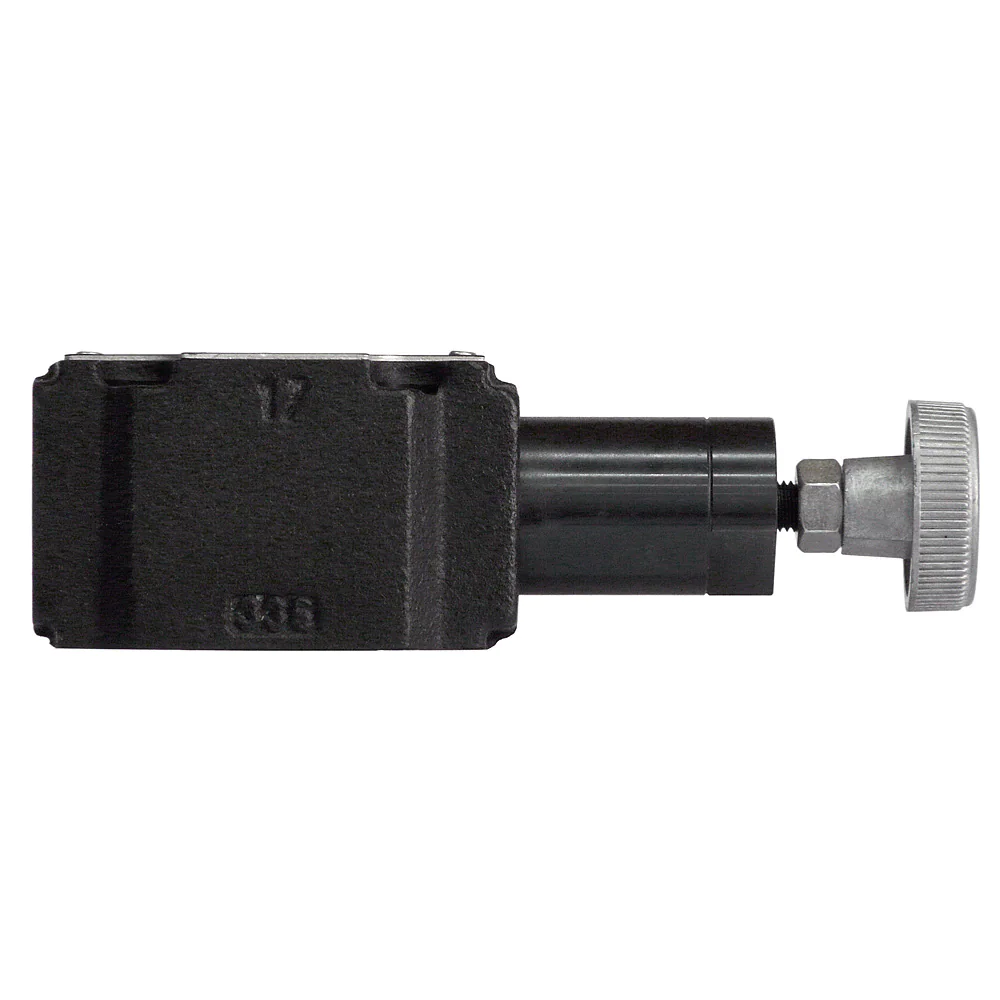

Parker Series UR06M / US06M 2-Way Slip-In Cartridge Valves
The pilot valves with unloading function series UR06M for subplate mounting and US06M for sandwich plate mounting in NG06 are part of the wide Parker pilot control range for DIN cartridge valves.
Get a quick quote
The pilot valves with unloading function series UR06M and US06M in NG06 contribute to trouble-free-operation. They are universally applicable due to two mounting options:

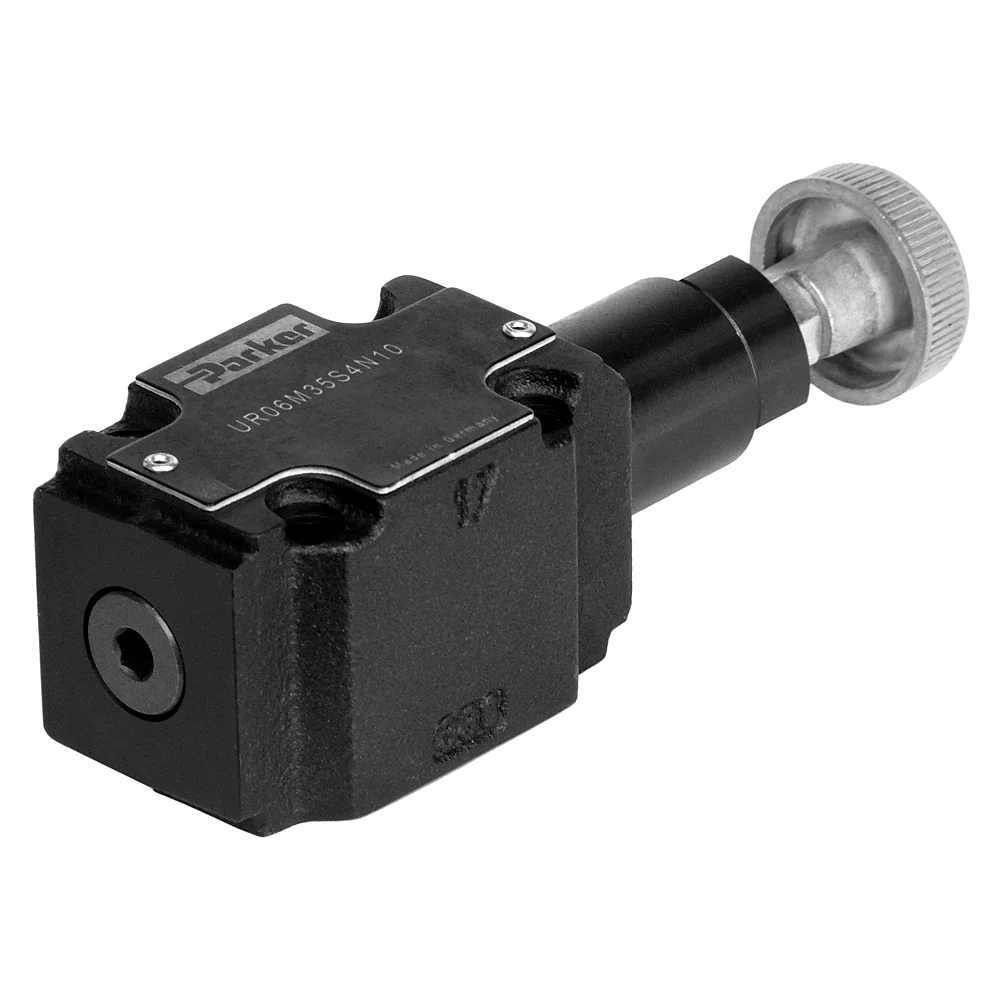

• UR06M for subplate mounting

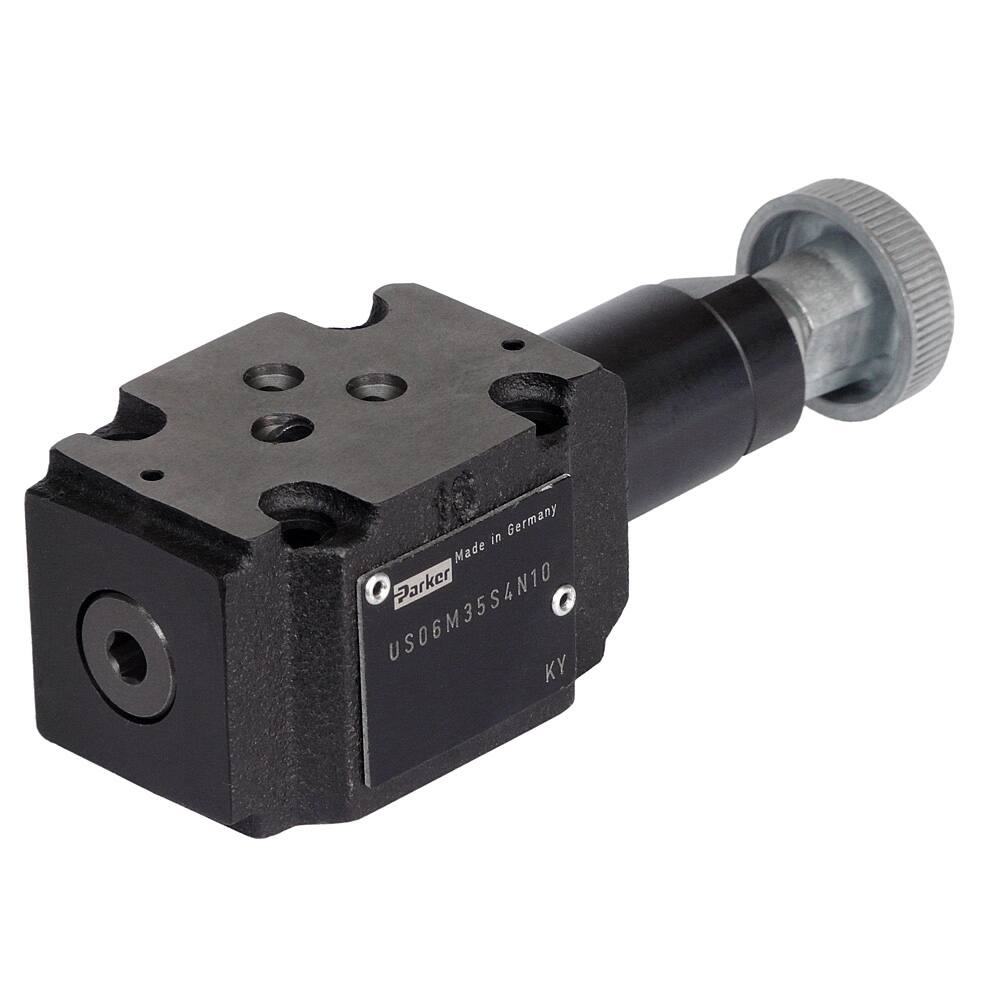

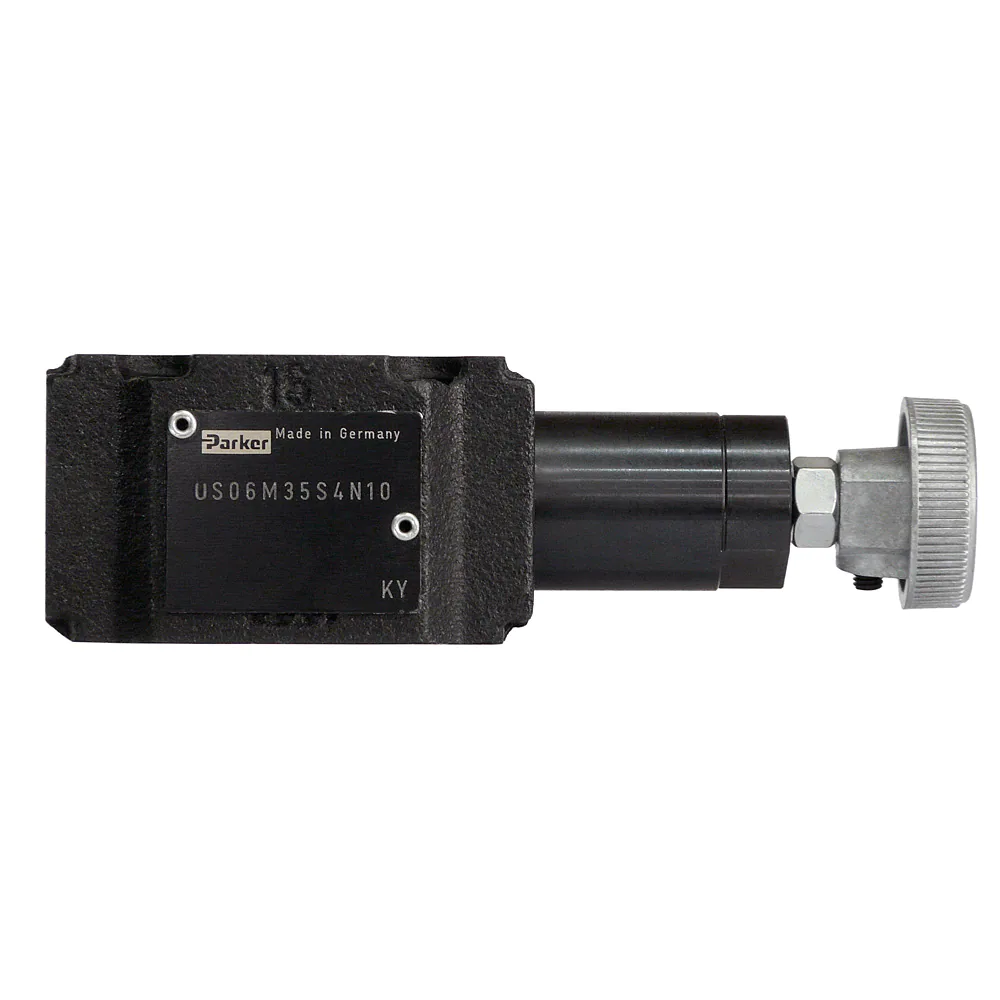

• US06M for sandwich plate mounting
The valves complete Parker’s wide pilot control range for DIN cartridge valves. By this modular system, many pressure functions are documented.
Markets:
• Industrial
Benefits:
• Compact, proven design that represents our long-term experience in hydraulics – increases reliability
• Pressure range from 70 to 350 bar – enables fine adjustment
• MTTFD value 150 years – ensures long service life
• Pressure adjustment via acorn nut with lead seal or cylinder lock (on request)
• Flow rate maximum 5 l/min
Applications:
• Suitable for general hydraulic applications
Technical Specifications
| Actuation Type | Manually |
| Product Series | Pressure valve |
| Weight | 1 kg |
| Maximum Flow Rate | 5 L/min |
| Maximum Operating Pressure | 350 bar |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -20 °C |
| Seal Material | NBR, FPM |
| Configuration | N/A |
| Flow Rate | N/A |
| For Fluid Type | Hydraulic oil, Water glycol |
| Function | 2-Way |
| Operation Type | N/A |
| Maximum Pressure Setting | 70, 175, 250, 350 bar |
| Mounting Type | Sandwich mounting |
| Body Material | Cast iron |
